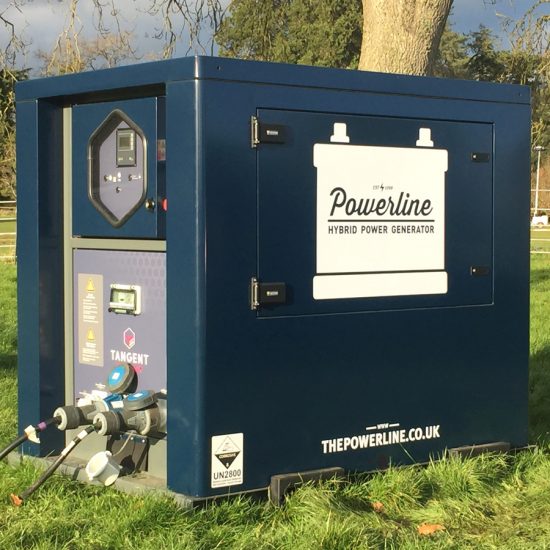

8 kVA Hybrid Generator V8

Hybrid-Generator-Hire-Powerline-V08
ADD TO QUOTE
Product Name 8 kVA Hybrid Generator V8
Product Order Code V8
Hybrid Size (kVA) 8
Incoming Connections 63/1
Outgoing Connections 63/1 and Busbar
CB Output 61/1
Frequency (Hz) (Configurable) 50/60
Phases Single Phase
Earth Leakage Protection Variable
Continuous Power @ 25deg 7
Standby Power (30mins) kVA 8
Standby Power 24
Inrush Power (30 Secs) kVA 21
Maximum current hybrid on A/Phase 30
Maximum current passthrough on A/Phase 50
Maximum output current passthrough + hybrid on A/Phase 80
Maximum current hybrid only (single phase) A 30
Maximum current passthrough (single phase) A 50
Battery capacity kW/h 25
Noise Level @ 1 meter Trace
Noise Level @ 7 meters 0 dBA
Dimensions Length (mm) 2180
Width (mm) 1100
Height (mm) 1400
Generator Autostart Terminals Binding posts
Fork Truck Pockets Y
GSM telemetry & control Y
Standby Power 24
