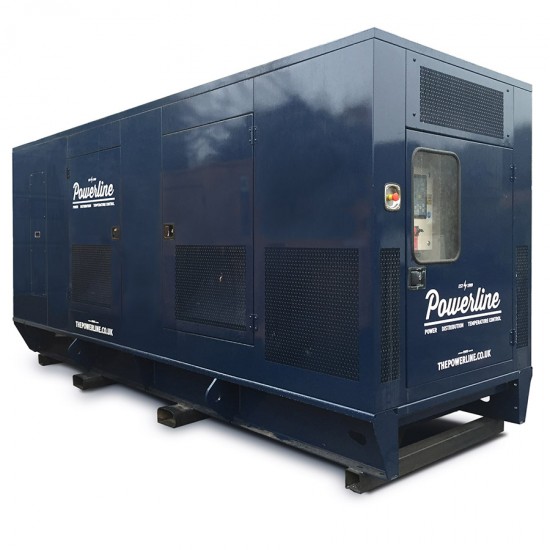

500 kVA Skid Mounted Generator GS500SM

Product Name 500 kVA Skid Mounted Generator
Product Order Code GS500SM
Outgoing Connections Busbar
Generator Size kVA (50Hz) 500
Generator Size kW (50Hz) 400
Size (Amps) 722
Circuit Breaker Output 800 Amp
Power Factor 0.8
RCD Protection YES
Petrol or Diesel Diesel
Fuel Consumption 75% Load 71L/hr
Noise Level @ 1 meter 79 dBA
Noise Level @ 7 meters 69 dBA
Weight with Fuel (kg) 5823
Weight without Fuel (kg) 5033
Dimensions Length (mm) 5000
Width (mm) 1780
Height (mm) 2350
Single point Lift YES
Fork Truck Pockets YES
Control Panel YES
Auto Start YES
Sync Options NO
Load Share Option NO
Road Tow Option NO
Engine Model Perkins 2506C-E15TAG
Aspiration Turbocharged
Cooling System Water cooled
Speed Governor Electronic
Cylinder Numbers 6
Displacement 15.2L
Additional Notes Fitted with Flat faced couplers for external tank.
