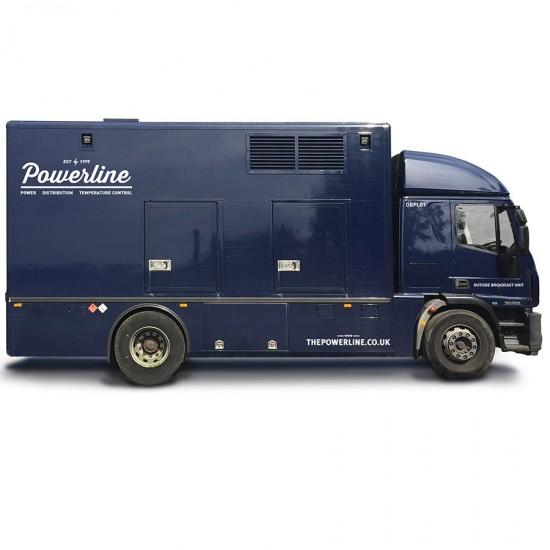

200 kVA Generator Truck GS200OB
| Product Name | 200 kVA Generator Truck |
| Product Order Code | GS200OB |
| Outgoing Connections | 2x 5 wire Powerlock, 2x 3 wire Powerlock, 2x 125/3, 2x 63/3, 2x 32/3, 2x 32/1, 2x 16/1 Cee Form |
| Generator Size kVA (50Hz) | 200 |
| Generator Size kW (50Hz) | 160 |
| Size (Amps) | 254 |
| Circuit Breaker Output | 300 Amp |
| Power Factor | 0.8 |
| RCD Protection | Switchable / variable |
| Petrol or Diesel | Diesel |
| Fuel Consumption 75% Load | 40L/hr |
| Noise Level @ 1 meter | 69 dBA |
| Noise Level @ 7 meters | 62 dBA |
| Weight with Fuel (kg) | 16,500 |
| Weight without Fuel (kg) | 15,600 |
| Dimensions Length (mm) | 8800 |
| Width (mm) | 2600 |
| Height (mm) | 3790 |
| Single point Lift | NO |
| Fork Truck Pockets | NO |
| Control Panel | YES |
| Auto Start | NO |
| Sync Options | YES |
| Load Share Option | YES |
| Road Tow Option | Built into 18t rigid |
| Engine Model | Cummins 6CTA8 |
| Aspiration | Turbocharged |
| Cooling System | Water cooled |
| Speed Governor | Electronic |
| Cylinder Numbers | 6 |
| Displacement | 8.3L |
| Additional Notes | Synchronised pair of generators mounted in 18t rigid, with separate control room and large load space with tail lift. Custom built twin generator truck. |
